Polaris General XP 1000 Heavy-Duty Prop Shaft Rhino Driveline

Match your General XP seating layout first

Choose Model, shaft location and carrier-bearing package to select your Rhino Driveline prop shaft. The seven existing choices are manufacturer-mapped to the two-seat General XP 1000. The four-seat selection is a front shaft only for the General XP 4 1000.

Front shaft for the four-seat General XP

PRP01-024F-1 is the 4 Seat / Front / N/A carrier-bearing selection. The manufacturer lists General XP 4 1000 from 2020 onward and OEM references 1333919 and 1334474 for the four-seat application. Match the OEM part and installed shaft position before ordering.

Construction and carrier-bearing choices

The C-Series shaft uses 4130 chromoly tubing with a 1.75-inch diameter, 0.120-inch wall and sealed CV joints. Where the selected package requires a carrier bearing, use a compatible SuperATV carrier bearing. Choose None only when you already have that bearing; Billet and Cast add the corresponding bearing. N/A means a carrier bearing is not necessary for that selection.

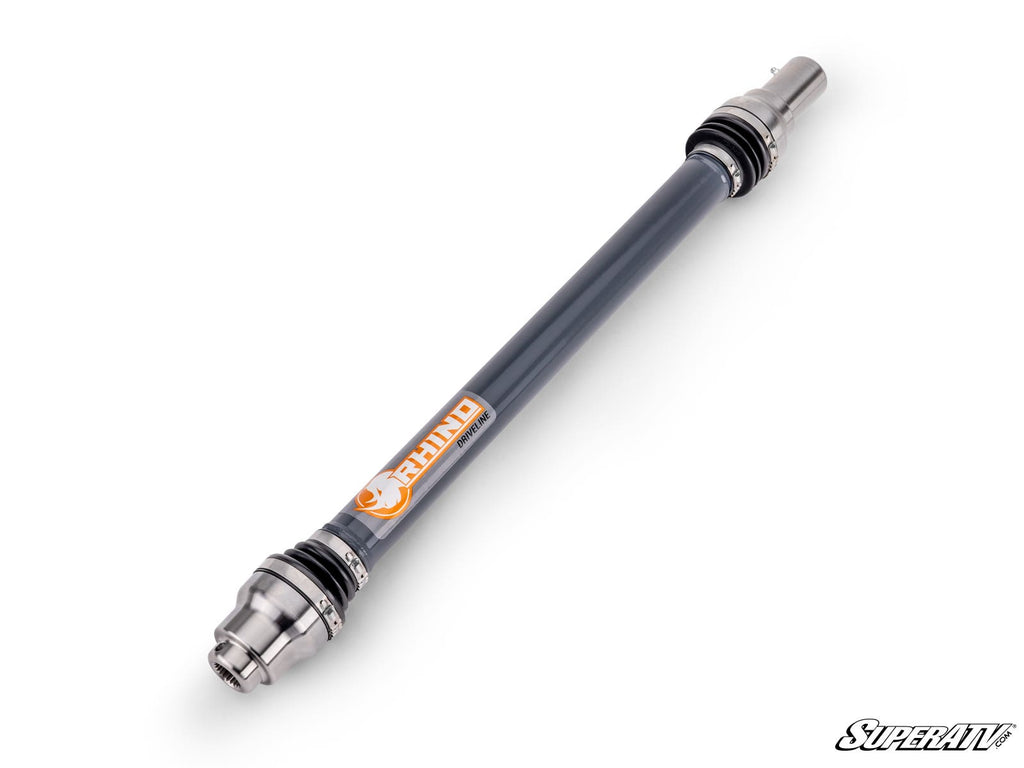

The four-seat photo shows the front shaft; it does not include a rear shaft or carrier bearing. This listing does not establish interchangeability with a standard non-XP General.
