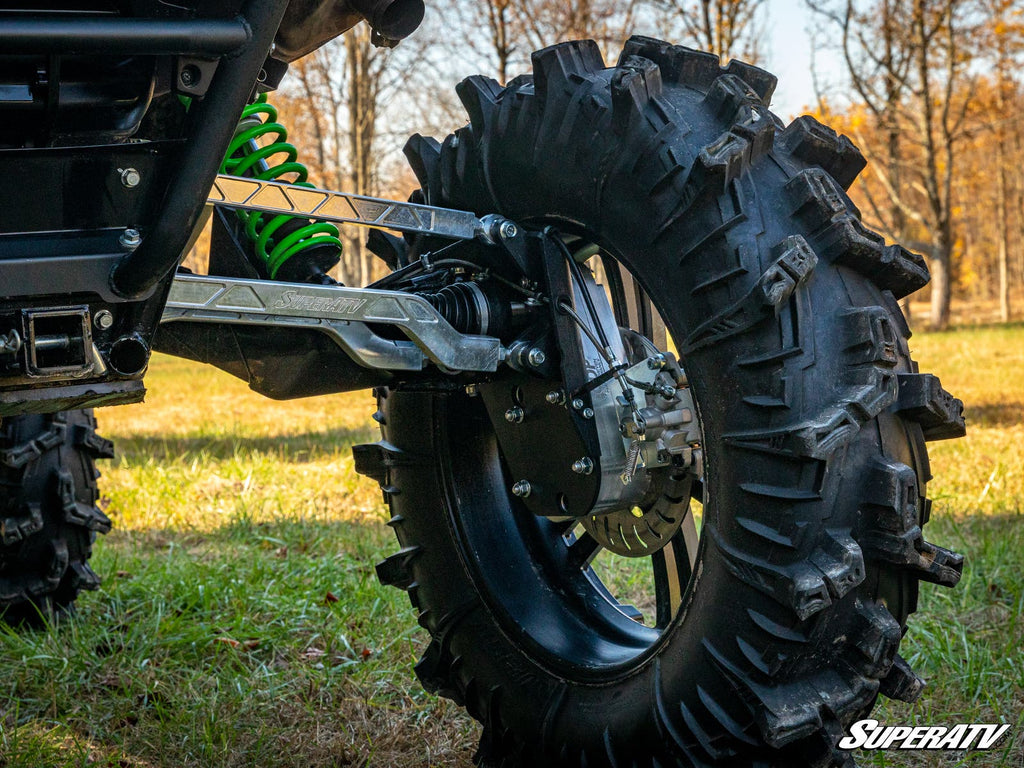

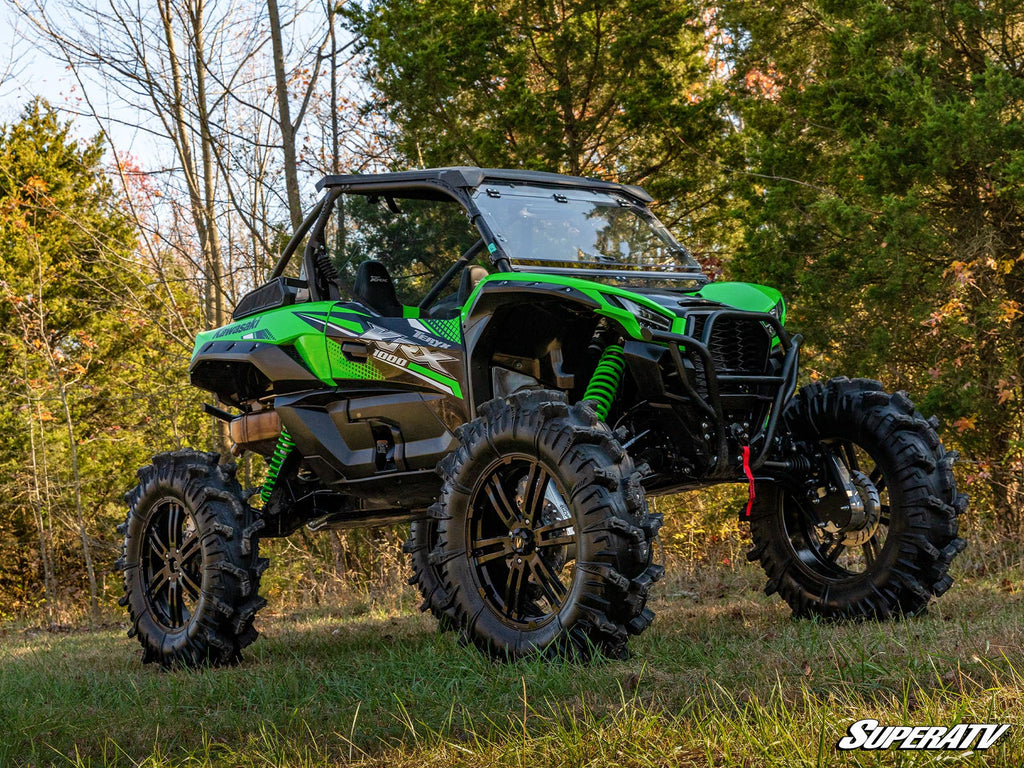

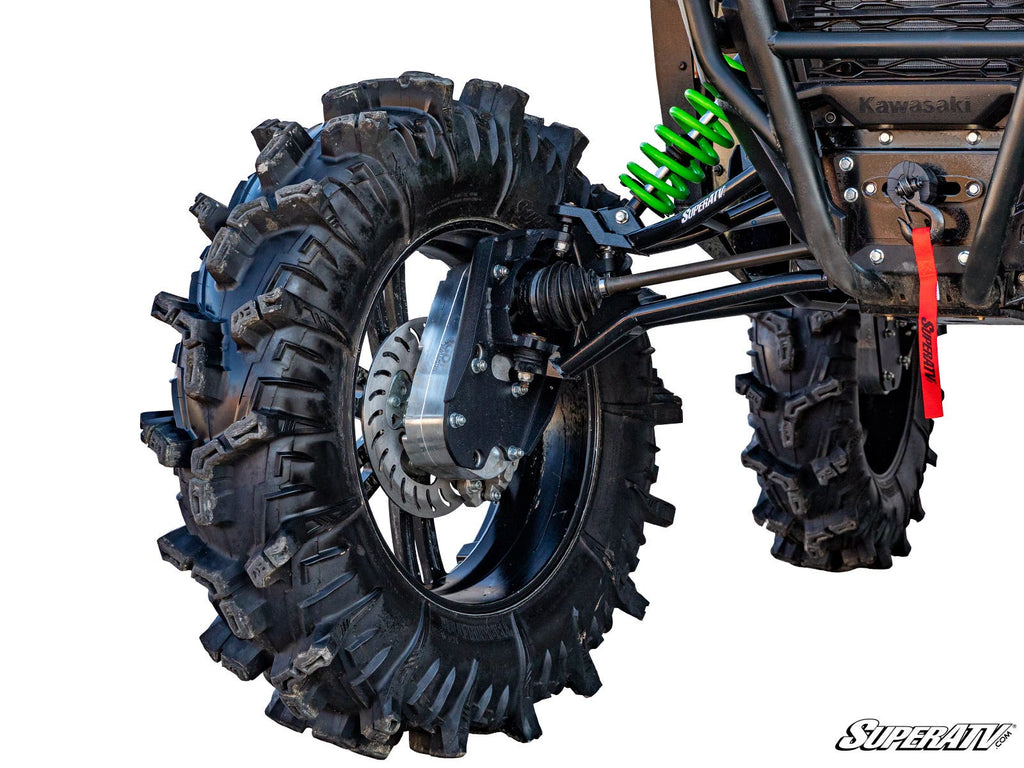

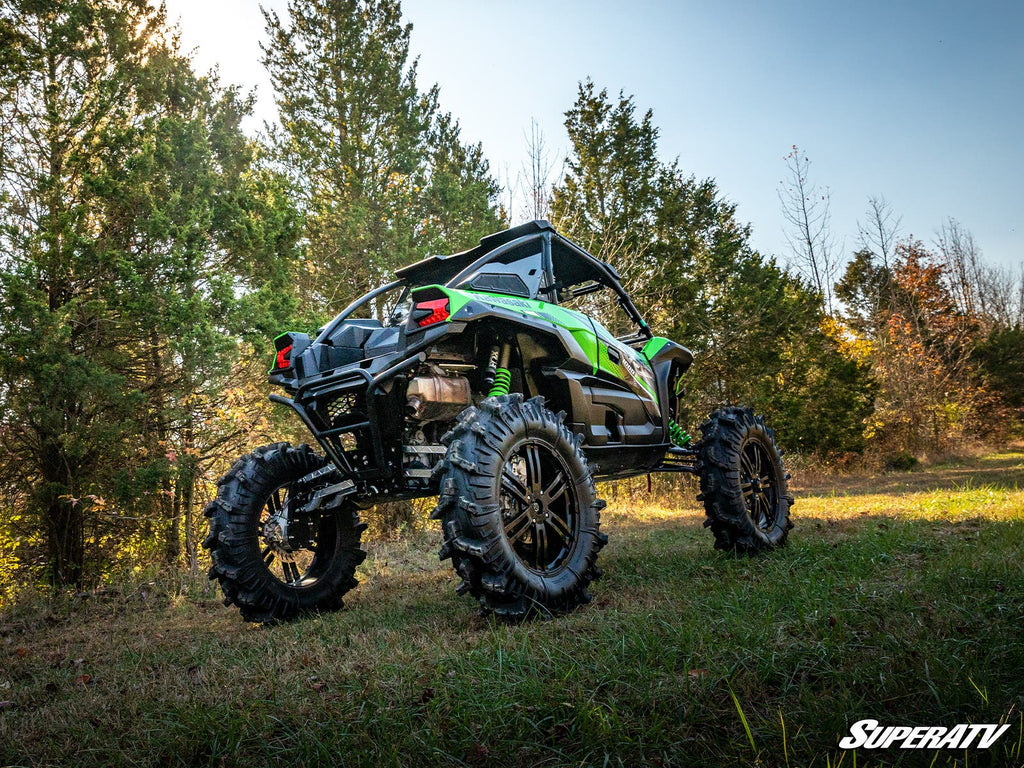

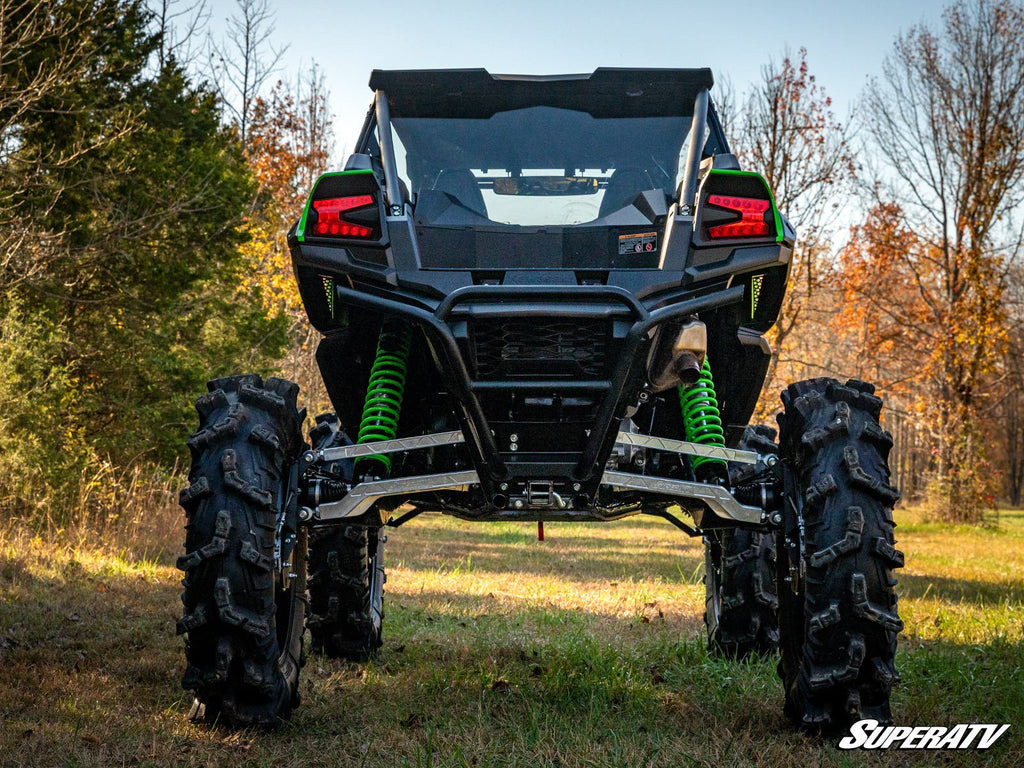

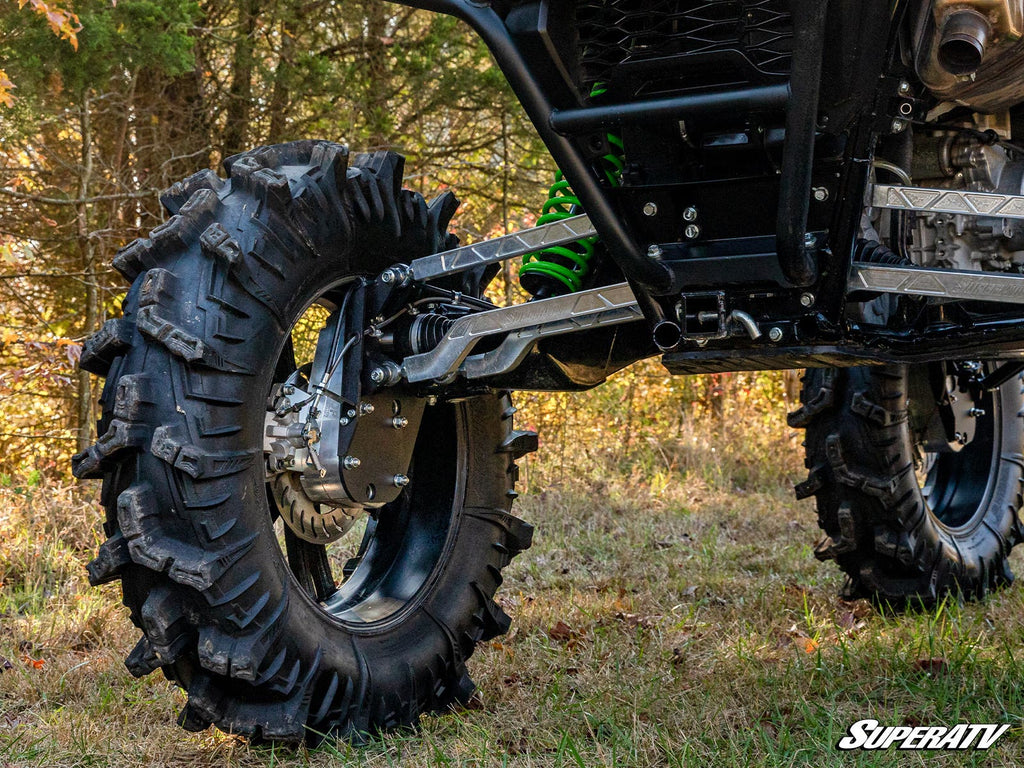

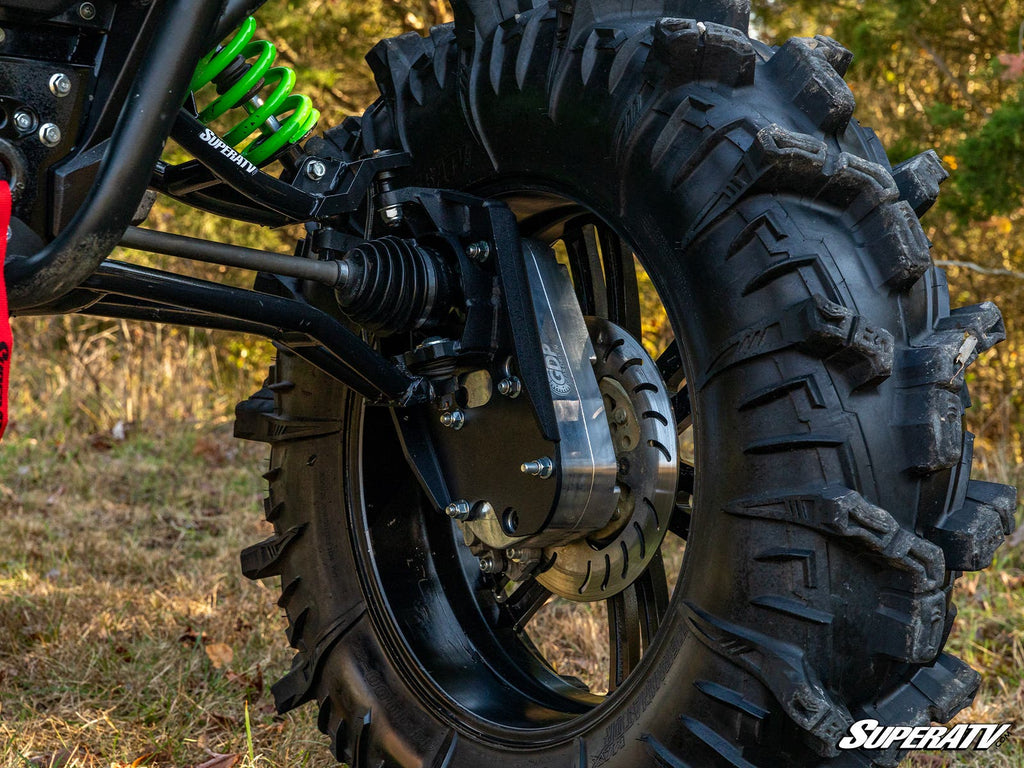

Kawasaki Teryx KRX 1000 8" Portal Gear Lift

Configure eight-inch portals for your KRX

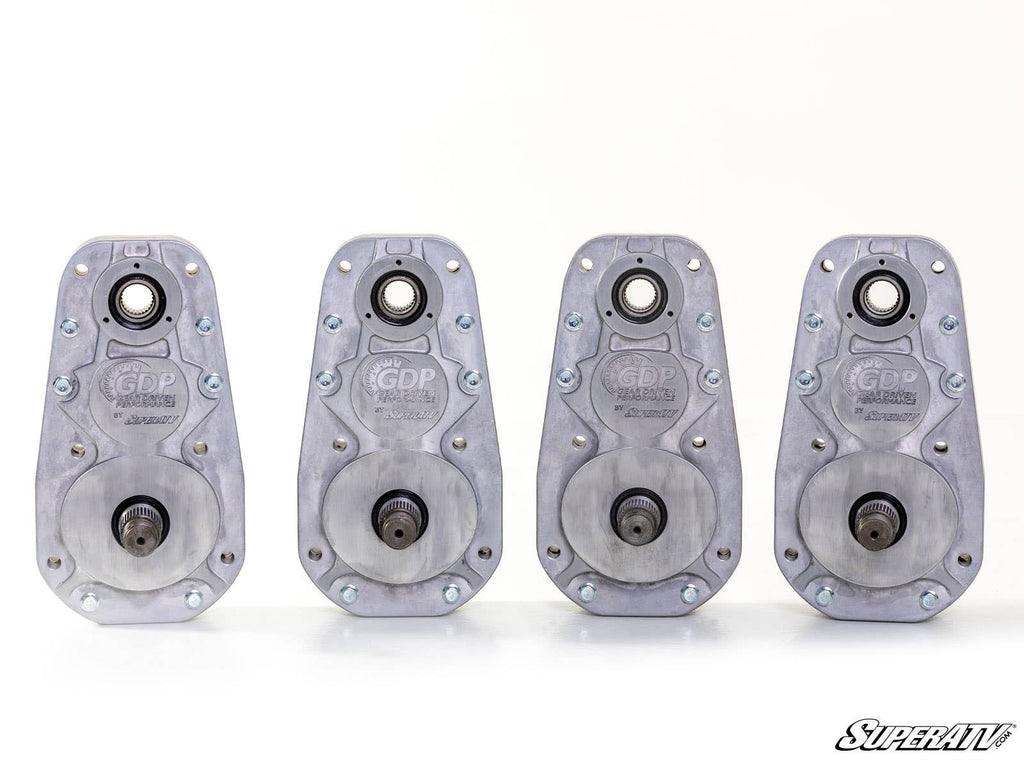

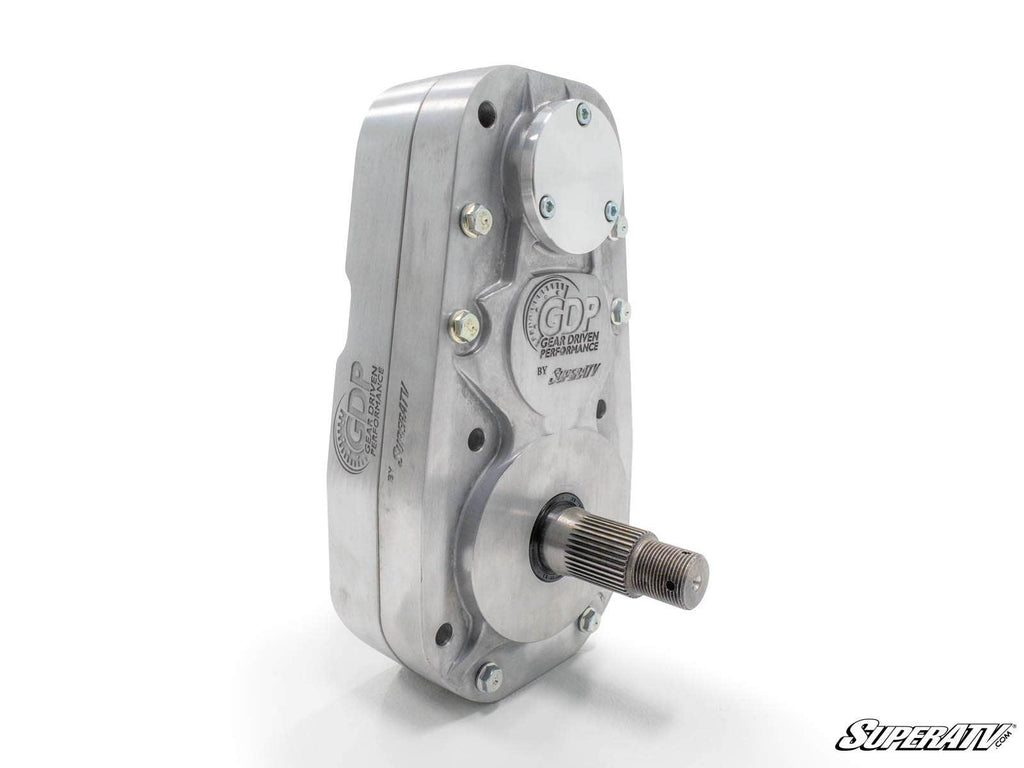

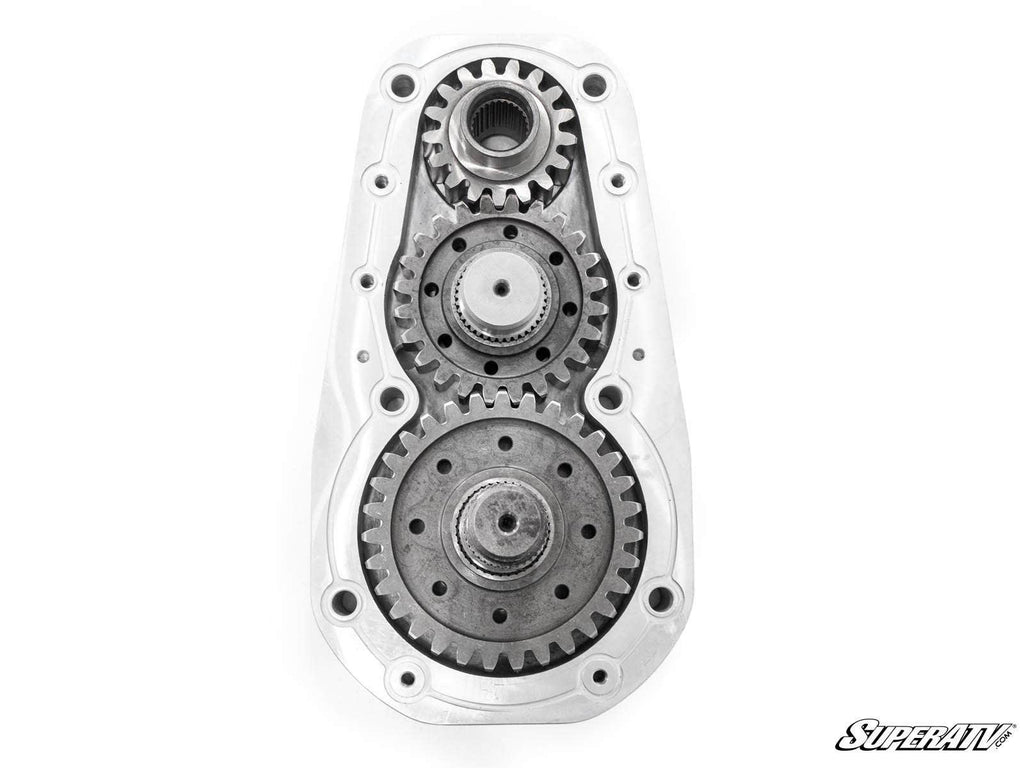

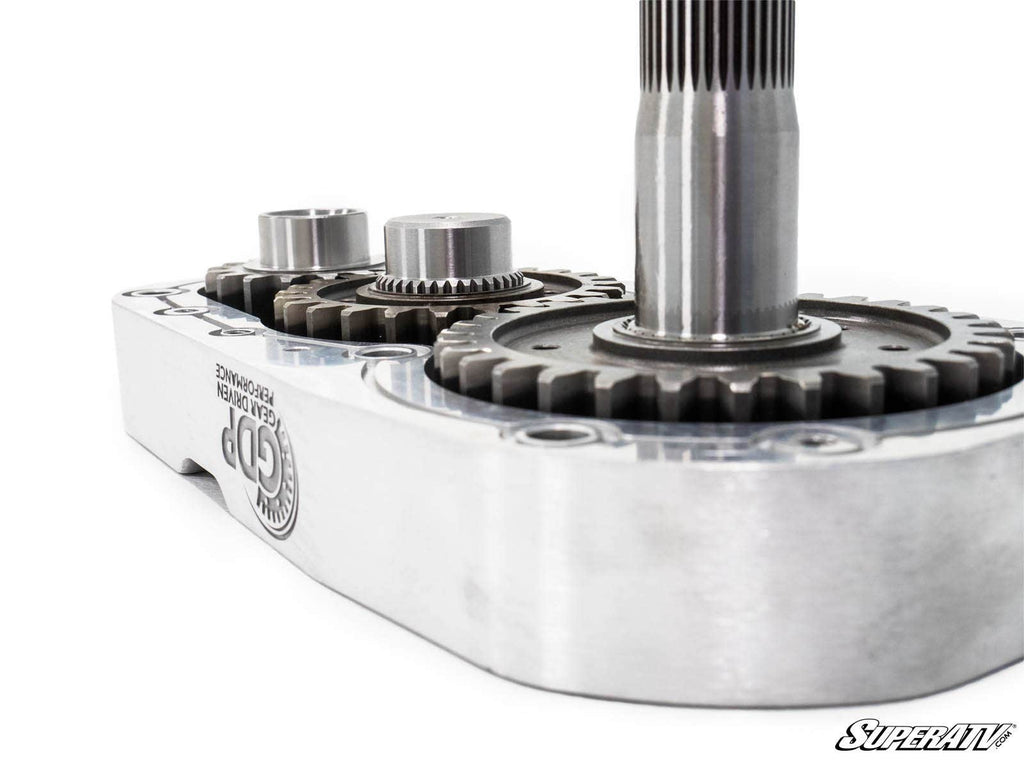

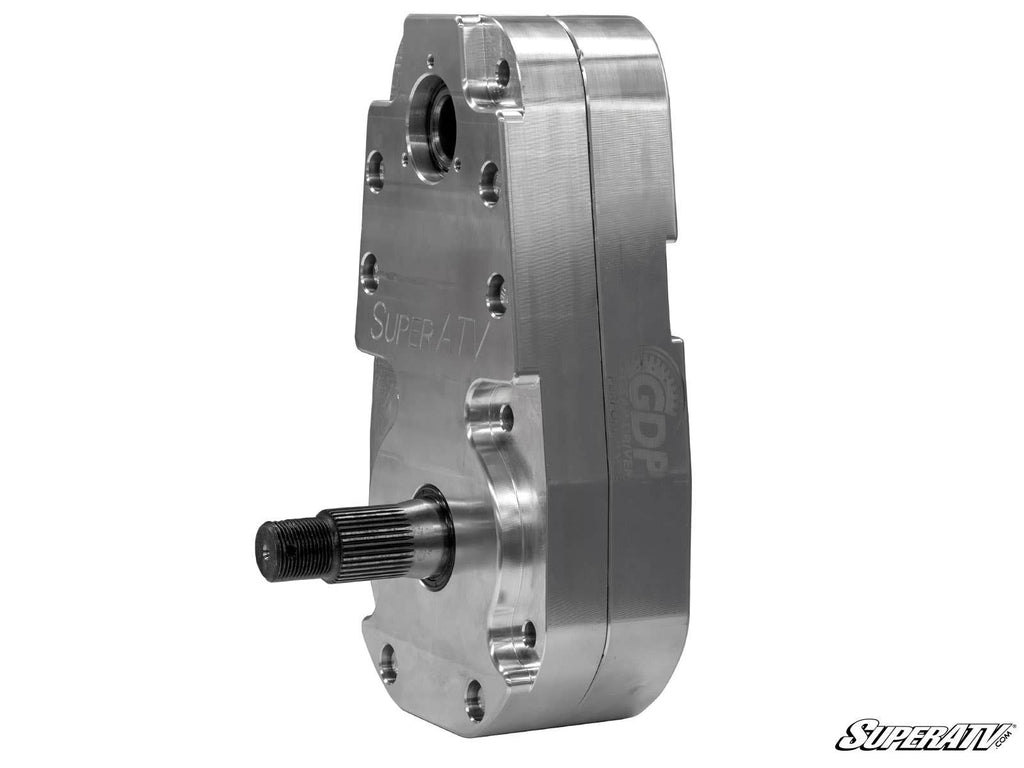

Match your KRX seating layout before choosing the reduction and idler setup. SuperATV GDP eight-inch packages offer different single- and dual-idler combinations, so compare the complete gear-reduction label as well as the housing material. A higher reduction favors low-speed torque at the expense of top speed.

A heavy-duty frame stiffener is required for this setup. Include one if you need it. Choose the no-stiffener package only when you already have the appropriate stiffener.

Available package combinations

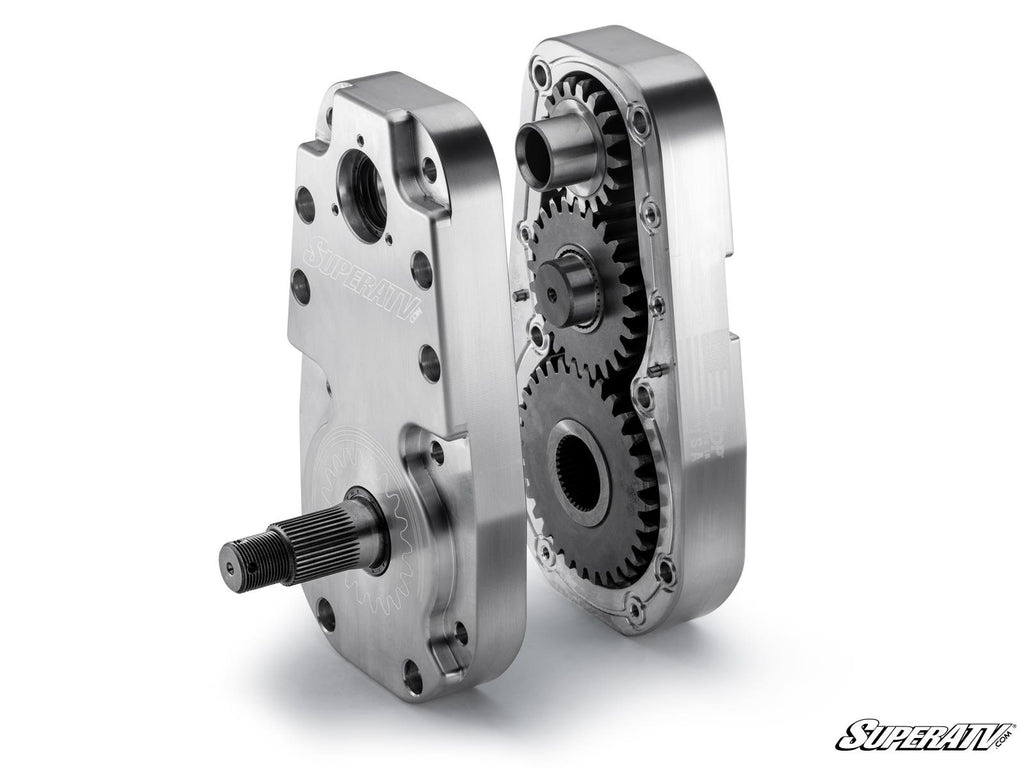

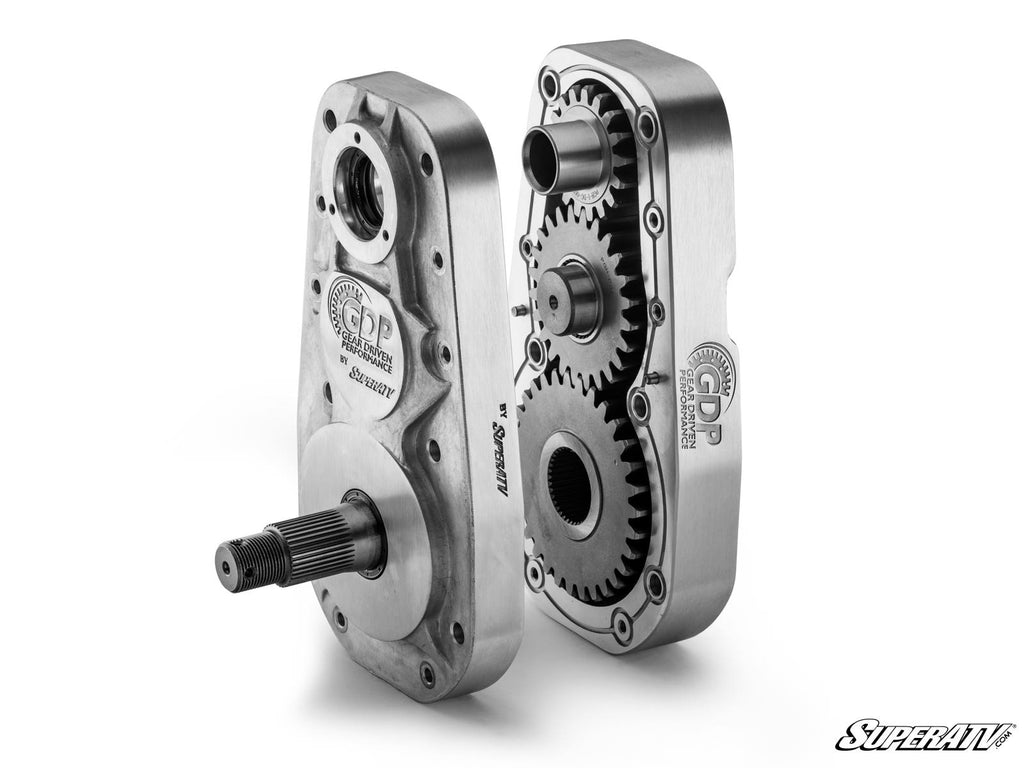

• 45% (2-seat, Single idler)
• 45% (4-seat, Single idler)
• 60% (2-seat, Dual idler)

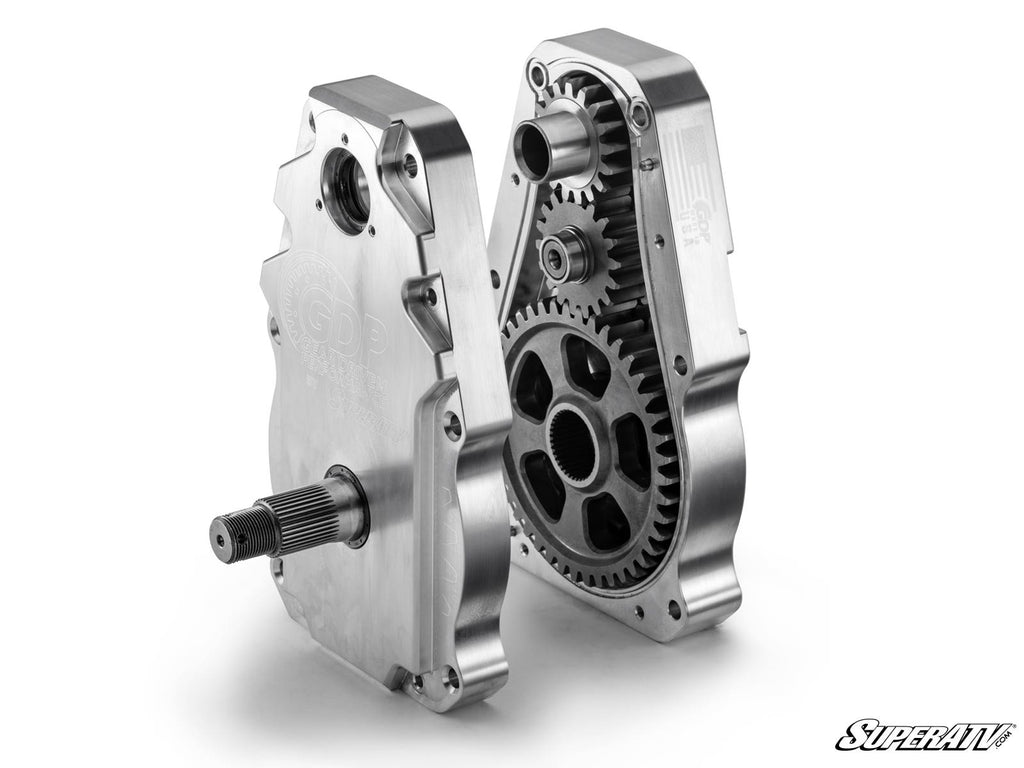

• 60% (2-seat, Single idler)
• 60% (4-seat, Dual idler)
• 60% (4-seat, Single idler)

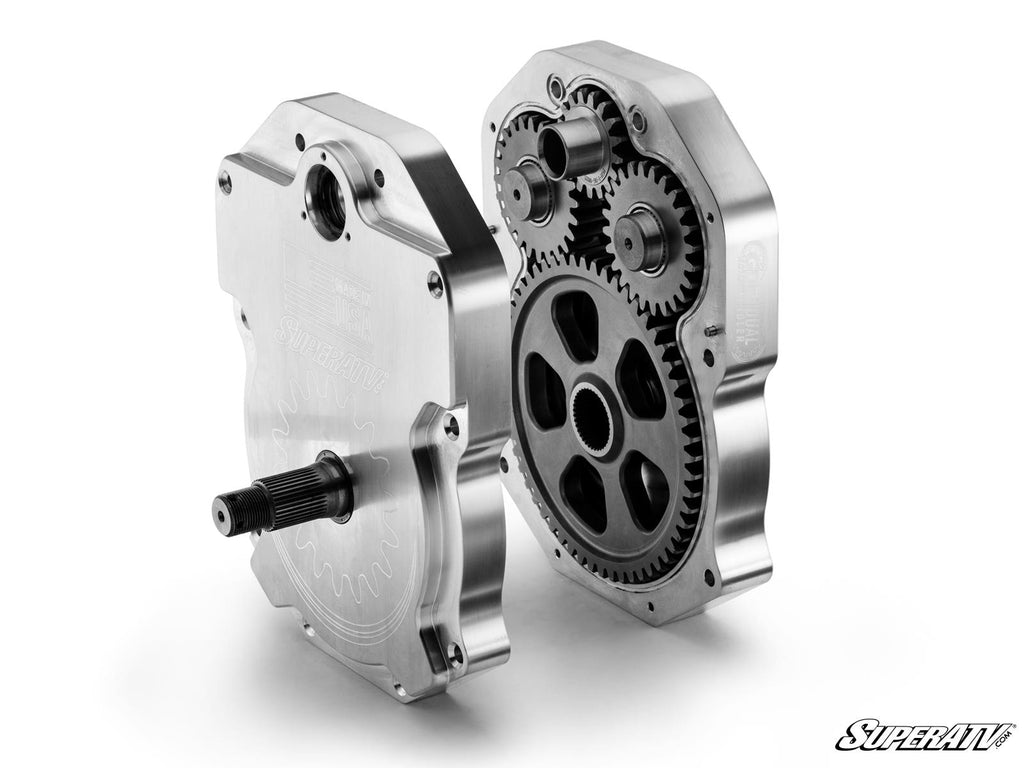

• 70% (2-seat, Dual idler)
• 70% (4-seat, Dual idler)

Supplier-listed vehicle ranges

Two-seat Kawasaki Teryx KRX 1000: 2020–2025. Four-seat Kawasaki Teryx KRX 4 1000: 2023–2025. Select the correct seating layout; these ranges do not establish compatibility with later years or unlisted configurations.

Wheel and installation requirements

• Use wheels at least 22 inches in diameter with no more than 5 inches of backspacing.
• Wheel center holes must be at least 3.25 inches (82.55 mm), or a 1-inch wheel spacer is required.

Check wheel dimensions before ordering. Portal kits and wheel spacers are separate decisions; do not assume a required spacer is included in the selected package. Retain and follow the manufacturer’s installation instructions.
