Can-Am Defender 6" Lift Kit

Cab and Lone Star lift selections

Choose the exact HD8 or HD10 engine, standard Defender or Defender MAX, year range and ball-joint package. Supplier application records for these Cab packages use XT Cab or DPS Cab wording; Lone Star records also include a Cab designation. Match the complete selection to your vehicle rather than using a trim nickname alone. These choices do not establish fitment for a different engine, Defender Pro or a different seating layout.

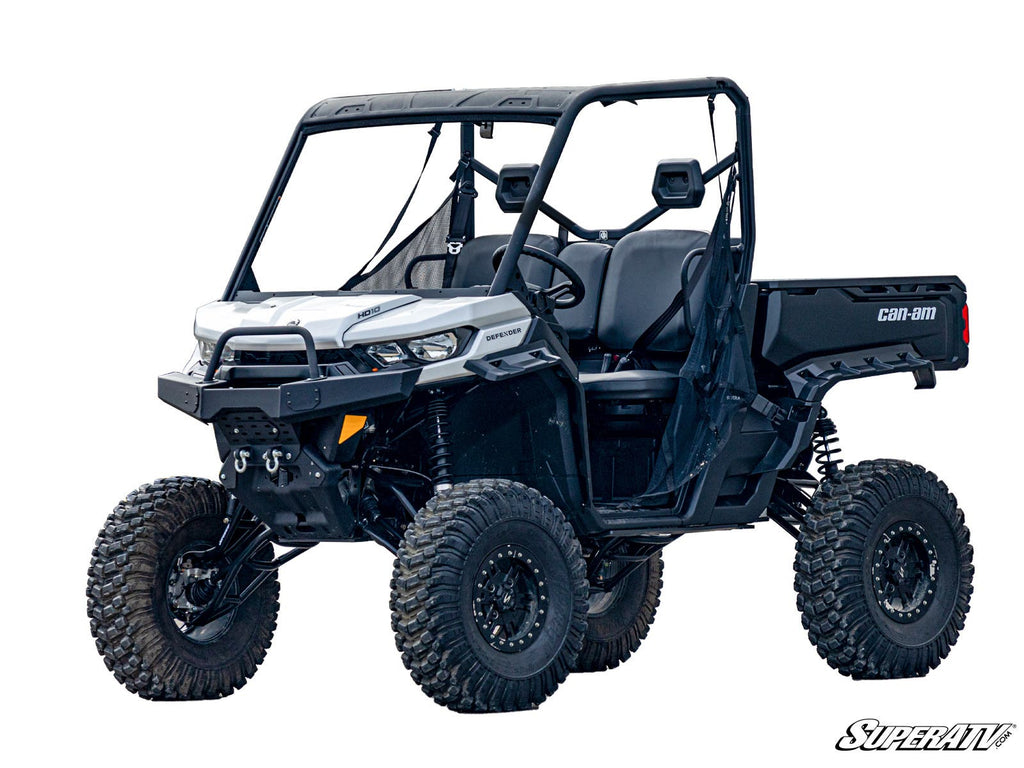

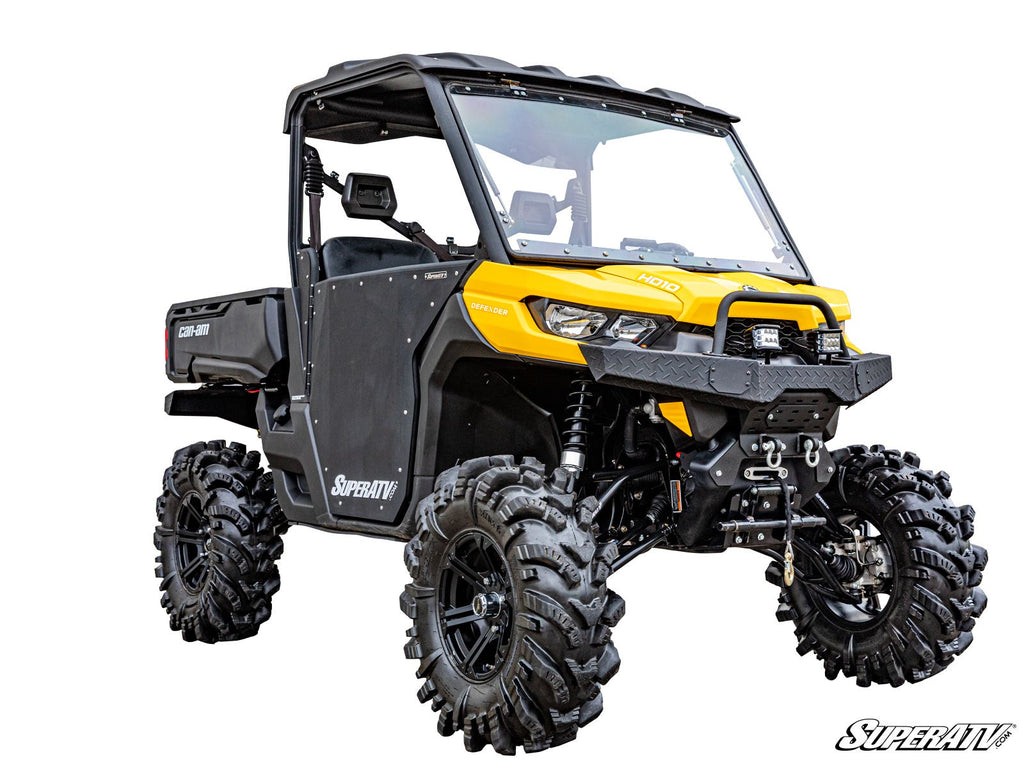

The shared supplier photo shows a standard open-cab Defender with a lift installed. It illustrates the lift family, not the selected cab configuration, optional ball-joint grade or every included part. Wheels, tires, winch and other vehicle accessories pictured are not included in the lift kit.

Match your Defender and ball-joint package

Select Defender or Defender MAX, the year range and the exact HD8 or HD10 trim. Package labels identify whether you reuse your existing ball joints or choose preinstalled 4340 chromoly, Keller or 300M ball joints. A reuse-existing selection does not include the optional preinstalled ball-joint upgrade.

Kit photographs are representative. Use the complete selected package description to determine the included ball-joint option; the photograph alone does not identify every component supplied. An HD8 selection does not establish HD10 fitment, and a standard Defender selection does not establish Defender MAX or Pro fitment.

Six-inch lift with matched suspension components

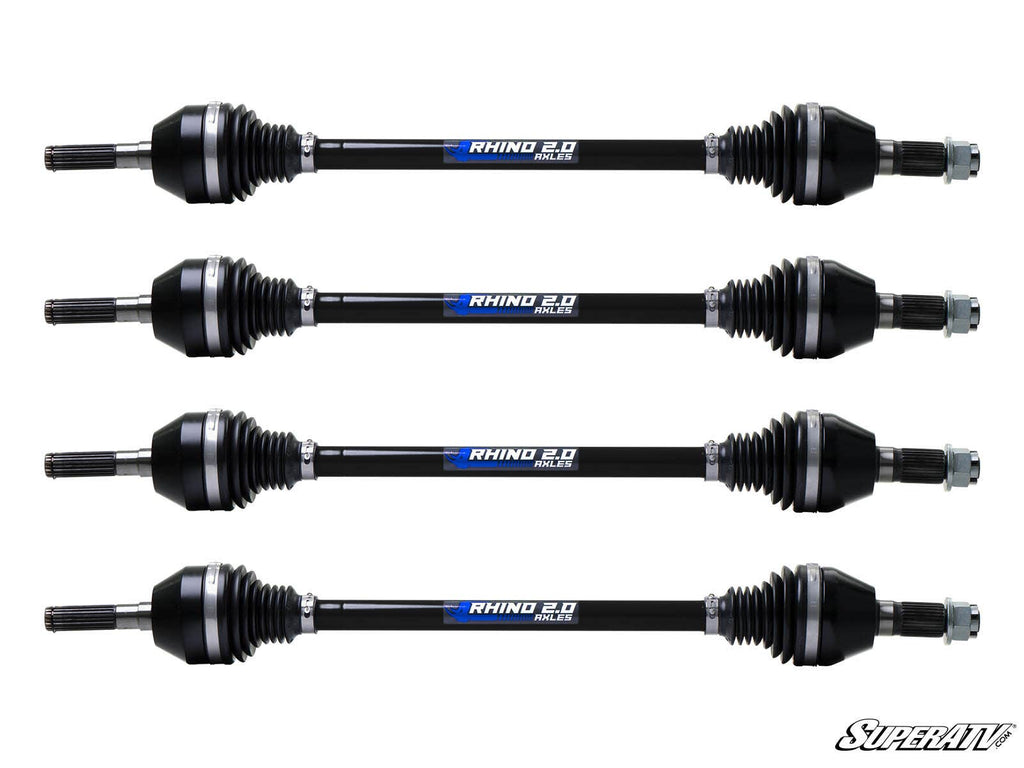

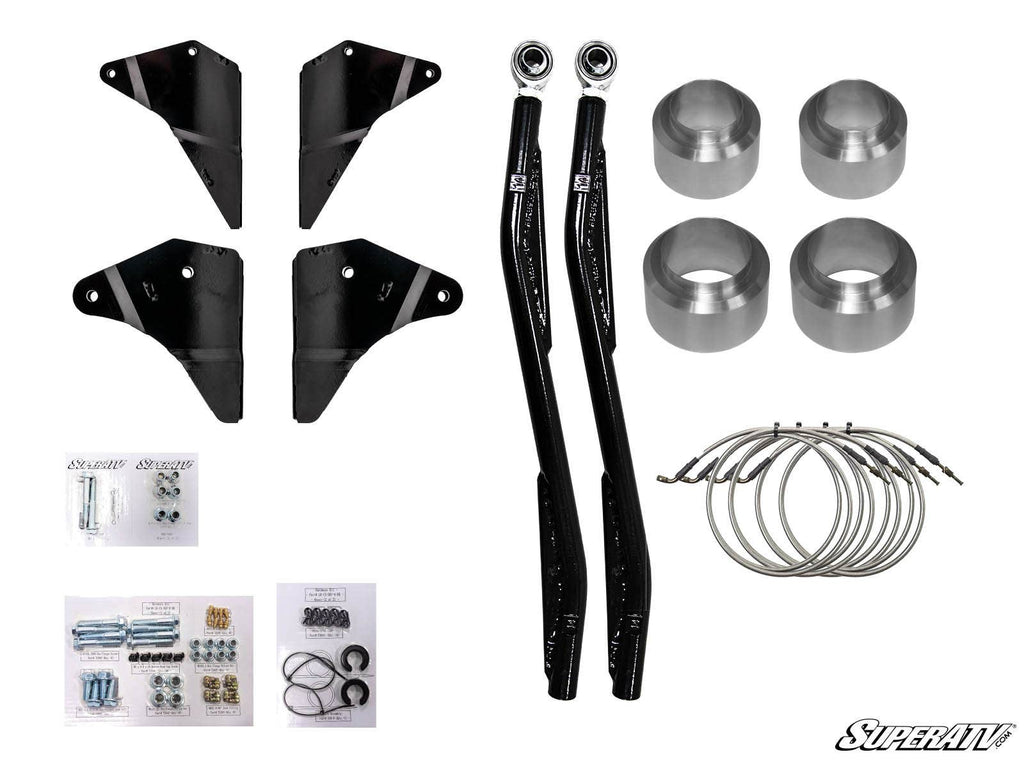

SuperATV lists front and rear lift brackets, spring spacers, A-arms, four Rhino 2.0 axles, a heavy-duty tie-rod kit, extended brake lines, hardware and installation instructions for this lift family. The exact model and year selection determines the vehicle-specific package.

Installation details to check before ordering

• This lift disables the front and rear sway bars.
• Some packages require exhaust modifications.
• HD10 packages generally do not include bushings. SuperATV lists an exception for the LK-CA-DEFMAX-6 kit; confirm the requirements for your exact package before installation.
• Retain all model, trim and year restrictions in the selected options. A later year range on another trim does not extend the fitment of your selection.

Follow the manufacturer’s installation instructions and inspect the condition of any components you plan to reuse.
