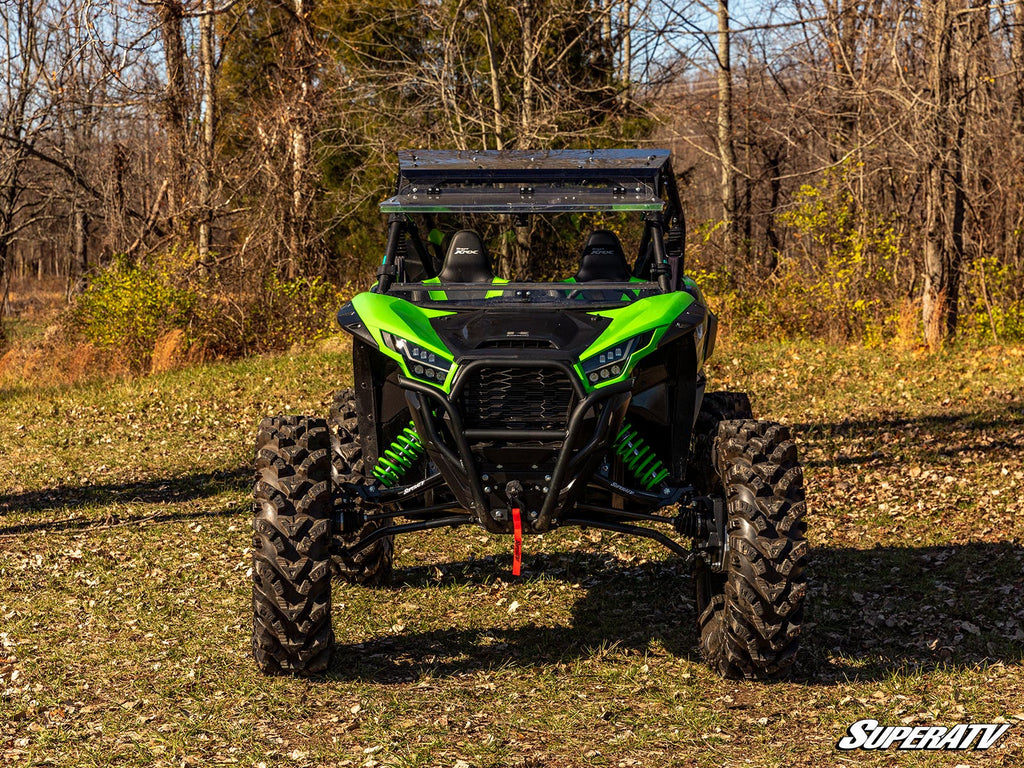

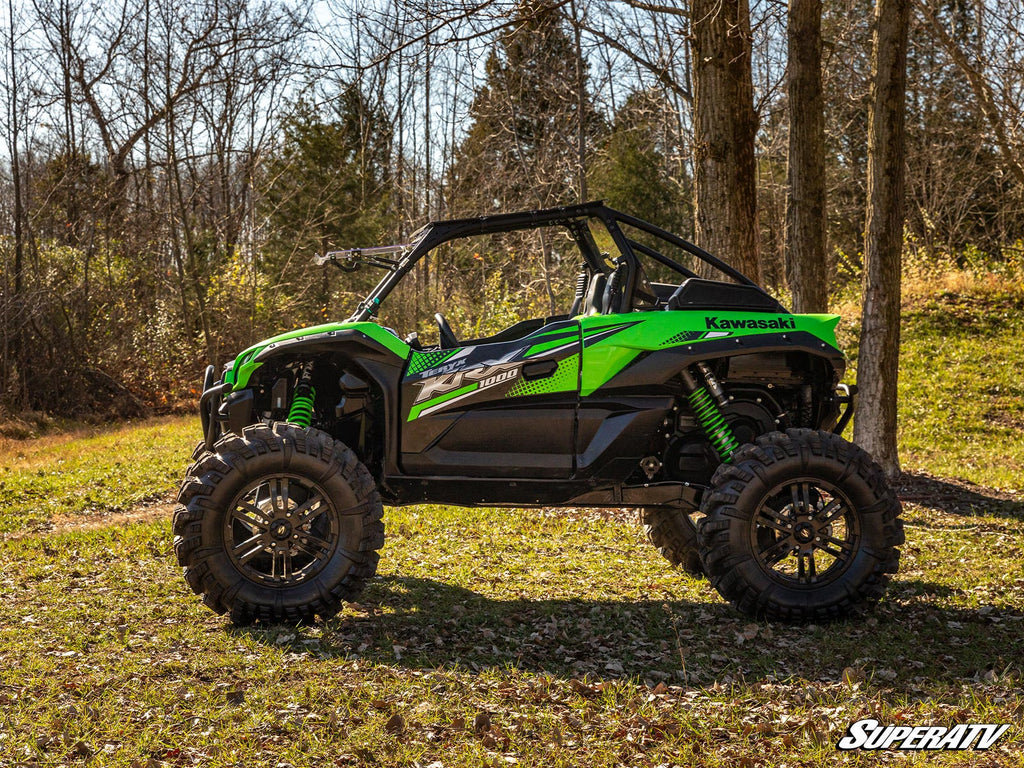

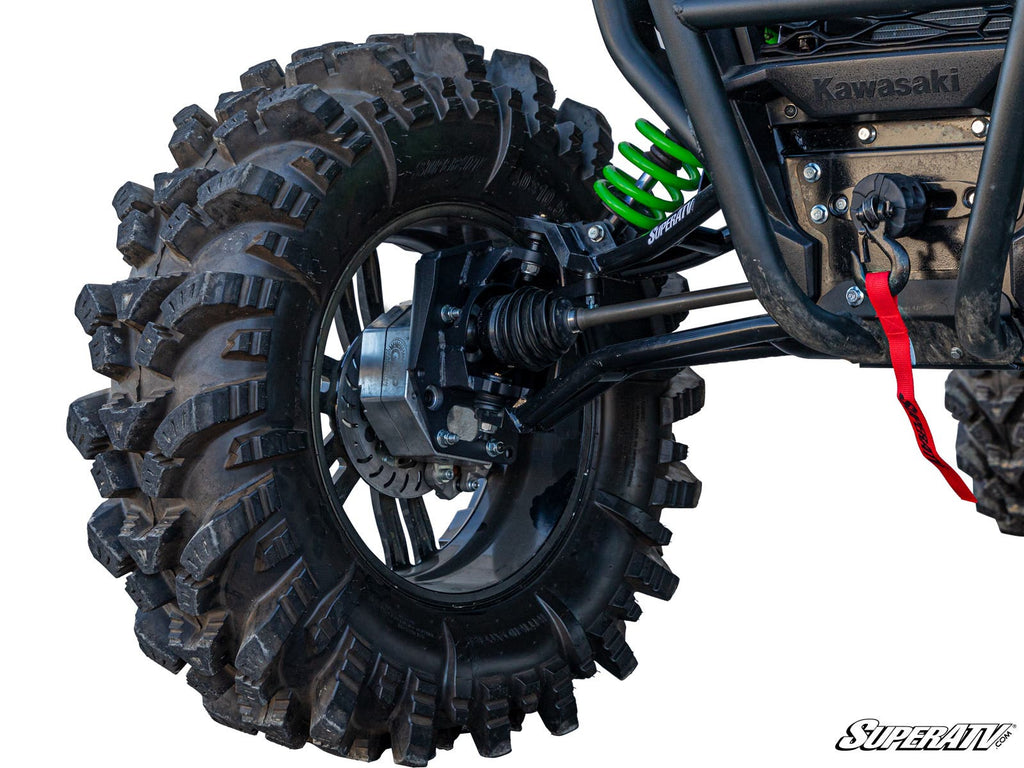

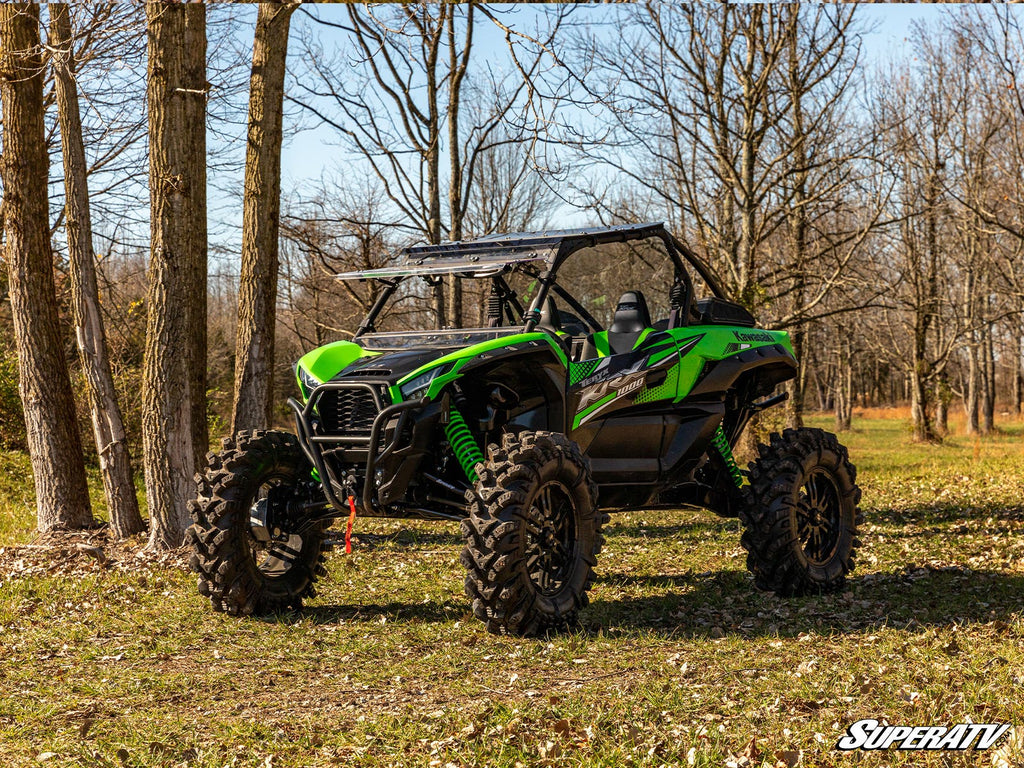

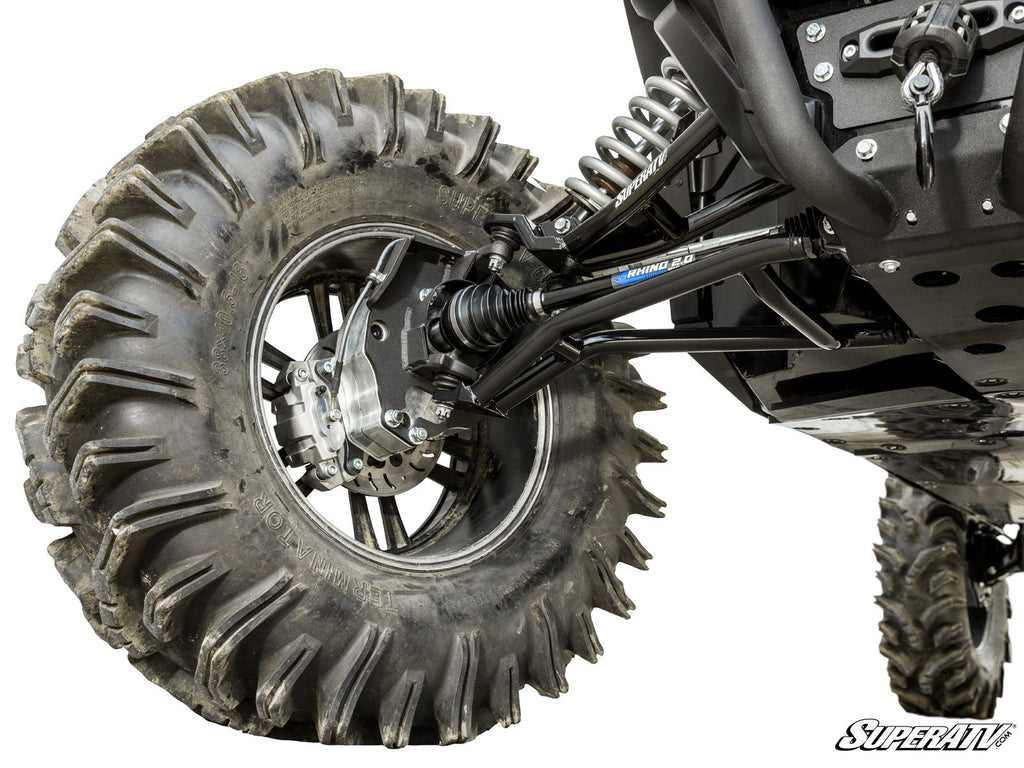

Kawasaki Teryx KRX 1000 4" Portal Gear Lift

Build your four-inch KRX portal package

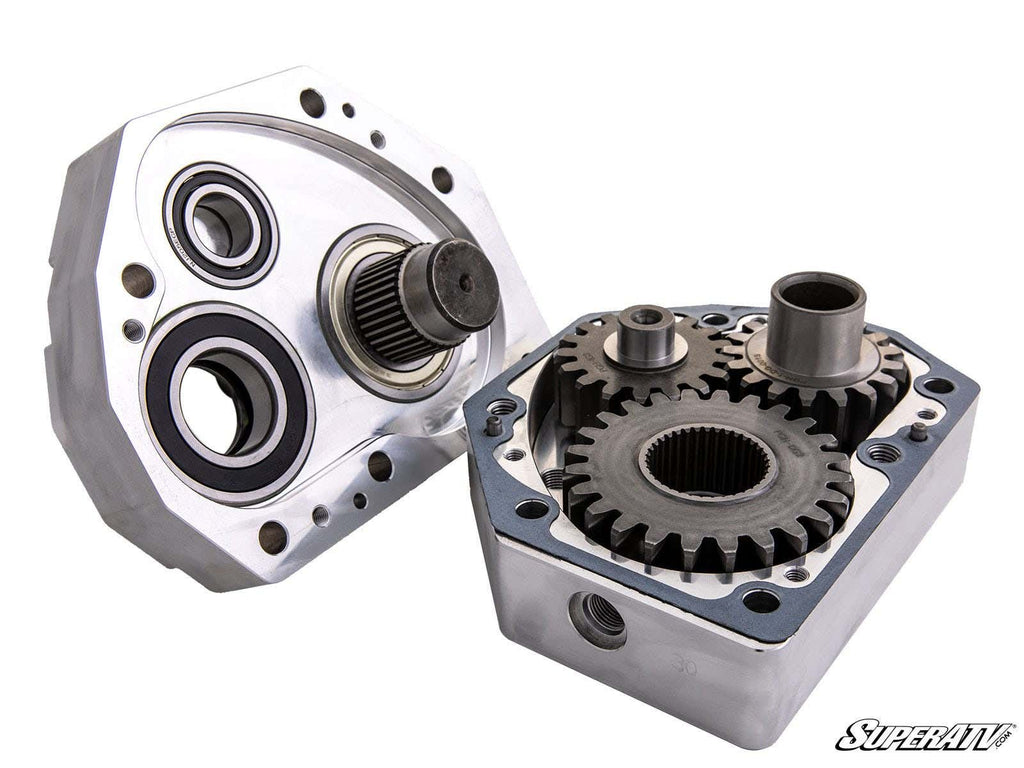

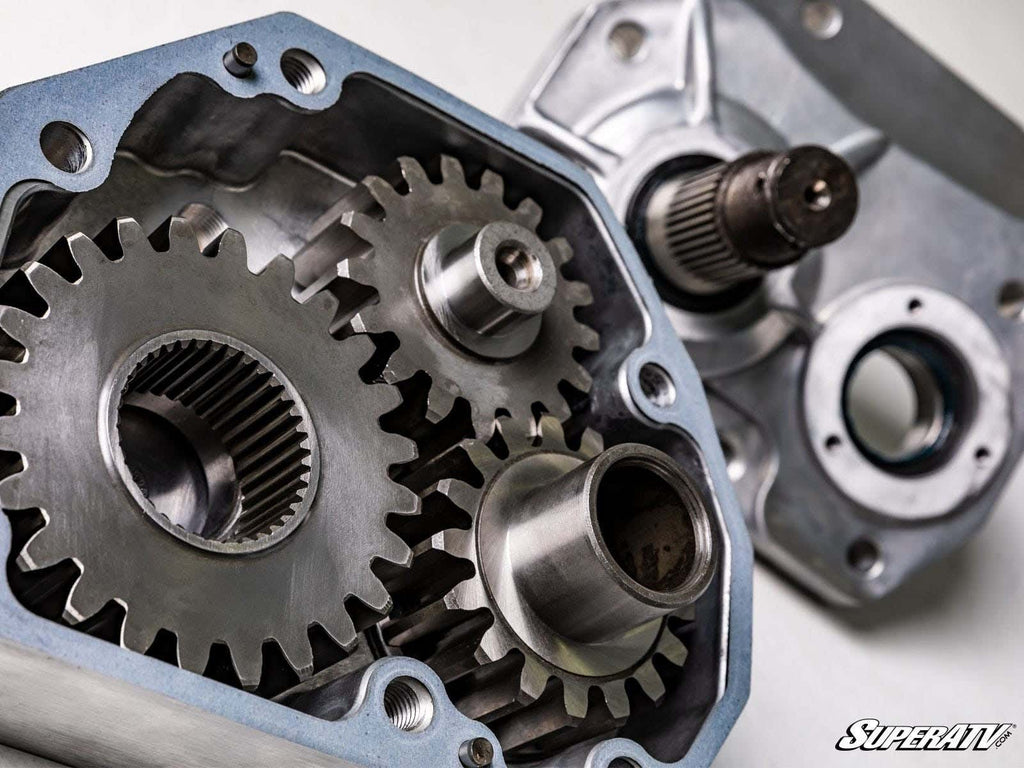

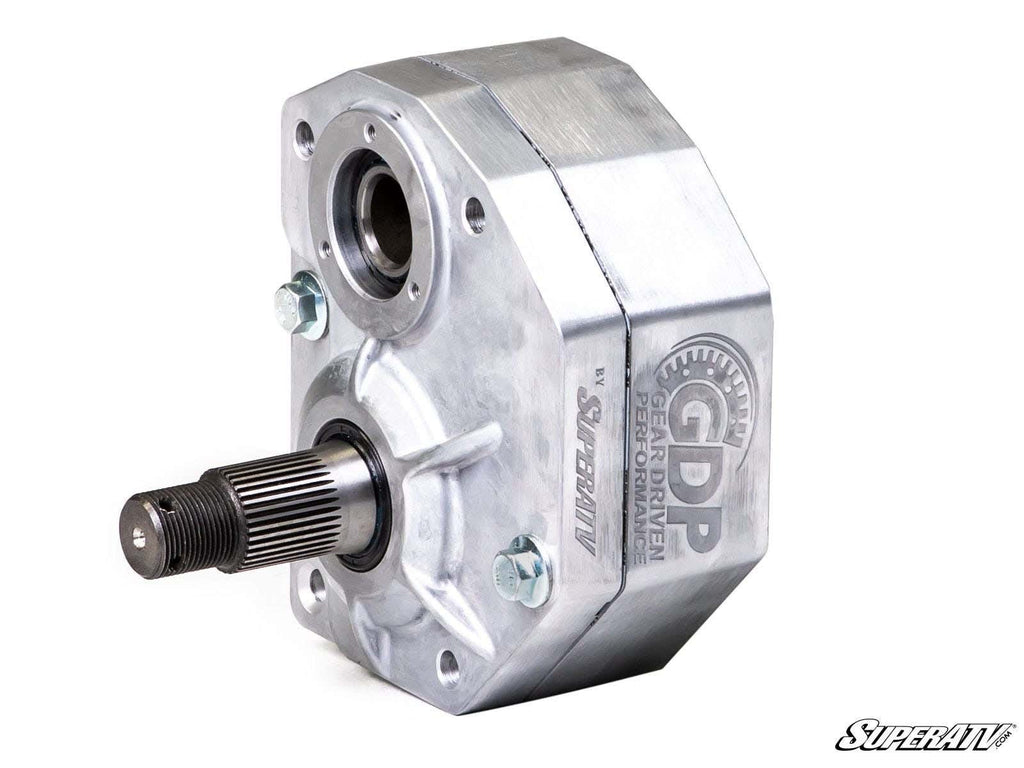

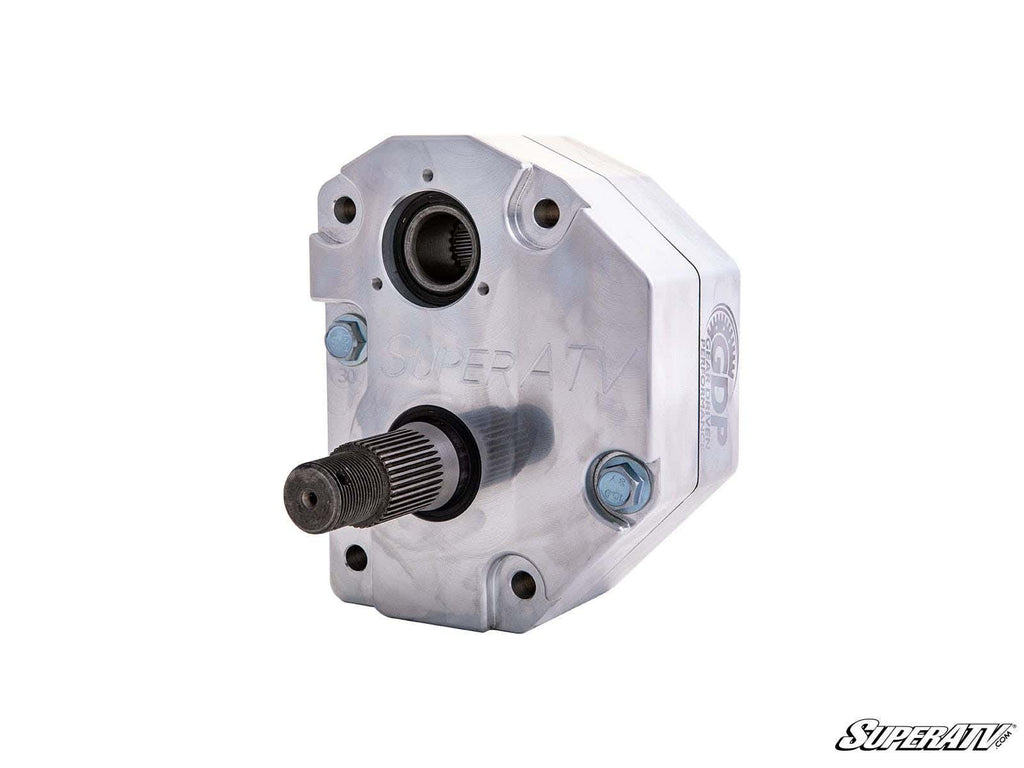

Configure SuperATV GDP portals around your KRX seating layout and intended setup. Choose the two-seat or four-seat version together with gear reduction and single- or dual-idler construction. Then select cast or billet housing and whether to include a frame stiffener. The complete selection identifies the package you are buying.

Available package combinations

• 15% (2-seat, Dual idler)
• 15% (2-seat, Single idler)
• 15% (4-seat, Dual idler)
• 15% (4-seat, Single idler)
• 30% (2-seat, Dual idler)
• 30% (2-seat, Single idler)
• 30% (4-seat, Dual idler)
• 30% (4-seat, Single idler)

Supplier-listed vehicle ranges

Two-seat Kawasaki Teryx KRX 1000: 2020–2025. Four-seat Kawasaki Teryx KRX 4 1000: 2023–2025. Select the correct seating layout; these ranges do not establish compatibility with later years or unlisted configurations.

Wheel and installation requirements

• Use wheels at least 14 inches in diameter with no more than 5 inches of backspacing.
• Dual beadlock wheels are not compatible.
• Wheel center holes must be at least 3.25 inches (82.55 mm), or a 1-inch wheel spacer is required.
• Stock wheels require 30 mm wheel spacers.

Check wheel dimensions before ordering. Portal kits and wheel spacers are separate decisions; do not assume a required spacer is included in the selected package. Retain and follow the manufacturer’s installation instructions.
