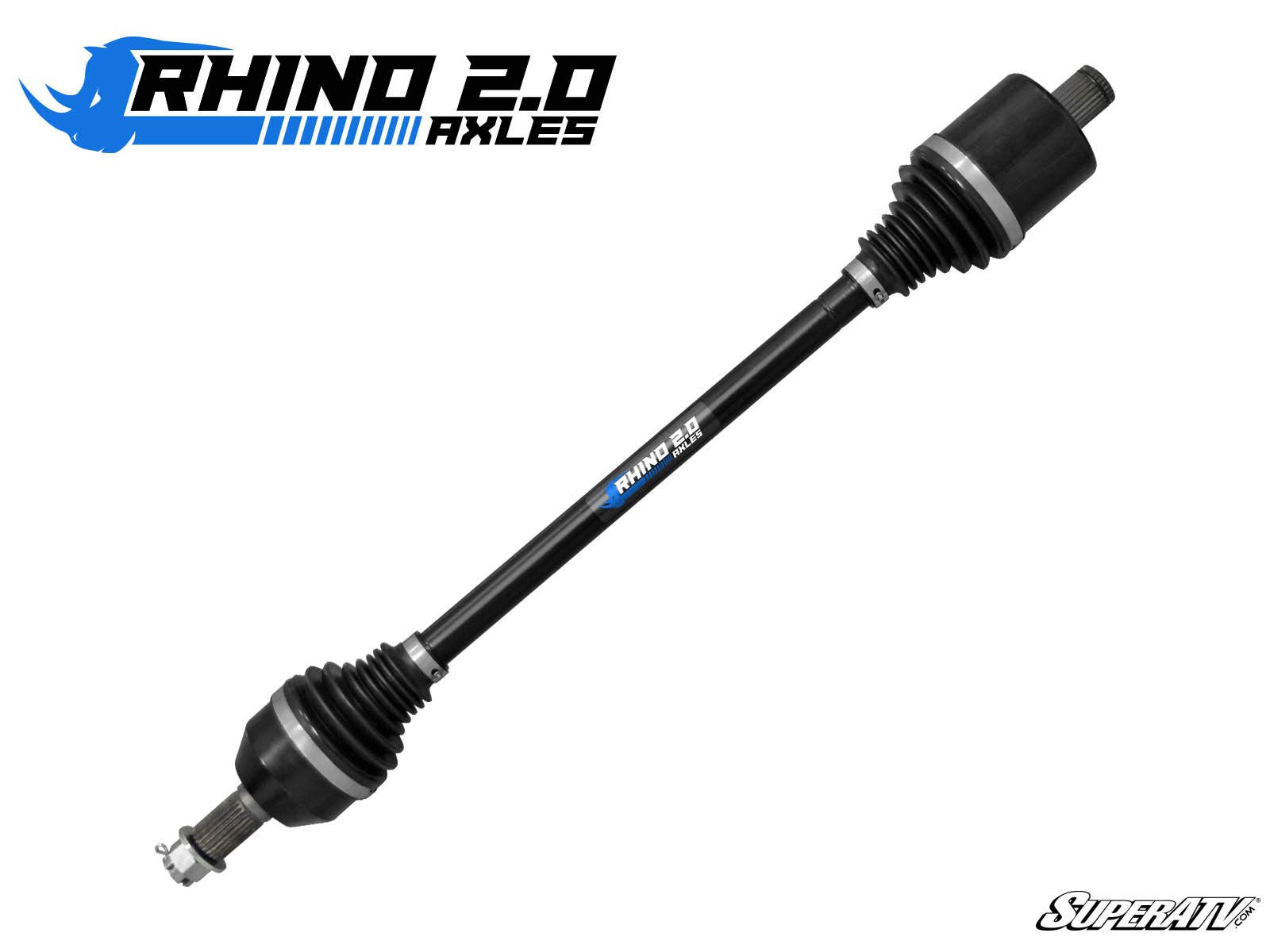

Polaris Sportsman XP Heavy-Duty Axle—Rhino 2.0

Match axle position and Sportsman model

Choose Front or Rear, then select the correct model group. The XP 1000 S choices are separate axles for the 55-inch Sportsman XP 1000 S, with listed applications beginning in 2020. They do not establish compatibility with standard-width Sportsman models or Scrambler models. Use All Other Models in Fitment only with the other listed applications.

Rhino 2.0 axles use 4340 chromoly steel and heat-treated components for demanding ATV use. Match the complete part number and axle position before ordering.

Rear axles are not compatible with SuperATV 2-inch lift LK-P-850-02. For the existing rear part AX-1-68-R-0-BT, the dust cap cannot be reinstalled. Follow the instructions for the selected axle.

Listed applications and installation notes

Polaris Sportsman XP 1000 : 2015+

Polaris Sportsman XP 1000 48" Trail : 2019+

Polaris Sportsman XP 1000 Hunter Edition 48" : 2020+

Polaris Sportsman XP 1000 S 55” : 2020+

Polaris Sportsman Highlifter XP 1000 : 2016+

Polaris Sportsman Touring XP 1000 : 2015+

Polaris Sportsman Touring XP 1000 48" : 2020+

Polaris Sportsman XP 850 : 2011+

Polaris Sportsman XP 850 48" Trail : 2020+

Polaris Sportsman X2 850 : 2011+

Polaris Sportsman SP XP 850 : 2015+

Polaris Sportsman Highlifter XP 850 : 2016+

Polaris Sportsman Touring XP 850 : 2011+

Polaris Sportsman Touring XP 850 48" : 2020+

Polaris Sportsman XP 550 : 2011-2014

Polaris Sportsman X2 550 : 2011-2014

Polaris Sportsman Forest XP 550 : 2011-2014

Polaris Sportsman Touring XP 550 : 2011-2014

Polaris Scrambler XP 850 : 2013+

Polaris Scrambler XP 1000 : 2014-2018

Polaris Scrambler XP 1000 S 55” : 2020+

NOTE:

Rear axle not compatible with SuperATV 2” lift LK-P-850-02

For AX-1-68-R-0-BT the dust cap can't be re-installed

Replacement for OE#s:

Front: 1332873, 1332383, 2203843, 2203844, 1333802, and 1333431

Rear: 1332642 and 1332809
